レプリケーションされたClickHouseのRESTOREを試す
目次
2025-06-29 追記
どうやら検証したバージョンが古く最新のバージョン 25.x.y.z だと ON CLUSTER で RESTORE はできないようでした。
https://clickhouse.com/docs/operations/backup
環境は docker-compose-recipes の cluster_1S_2R を利用した。 https://github.com/ClickHouse/examples/blob/5d56c8003b50a42a5cc58fdf9f8189b9cc148f1b/docker-compose-recipes/recipes/cluster_1S_2R/README.md
試したバージョンは 23.4.6.25
1clickhouse@clickhouse-01:/$ clickhouse-server --version
2ClickHouse server version 23.4.6.25 (official build).
ローカルにバせせックアップを取れるように設定しておく。
1hum@ryzen5pc:~/github.com/ClickHouse/examples/docker-compose-recipes/recipes/cluster_1S_2R$ git diff
2diff --git a/docker-compose-recipes/recipes/cluster_1S_2R/fs/volumes/clickhouse-01/etc/clickhouse-server/config.d/config.xml b/docker-compose-recipes/recipes/cluster_1S_2R/fs/volumes/clickhouse-01/etc/clickhouse-server/config.d/config.xml
3index 27a141d..cfe831f 100644
4--- a/docker-compose-recipes/recipes/cluster_1S_2R/fs/volumes/clickhouse-01/etc/clickhouse-server/config.d/config.xml
5+++ b/docker-compose-recipes/recipes/cluster_1S_2R/fs/volumes/clickhouse-01/etc/clickhouse-server/config.d/config.xml
6@@ -1,4 +1,16 @@
7 <clickhouse replace="true">
8+ <storage_configuration>
9+ <disks>
10+ <backups>
11+ <type>local</type>
12+ <path>/tmp/backups/</path>
13+ </backups>
14+ </disks>
15+ </storage_configuration>
16+ <backups>
17+ <allowed_disk>backups</allowed_disk>
18+ <allowed_path>/tmp/backups/</allowed_path>
19+ </backups>
20 <logger>
21 <level>debug</level>
22 <log>/var/log/clickhouse-server/clickhouse-server.log</log>
23diff --git a/docker-compose-recipes/recipes/cluster_1S_2R/fs/volumes/clickhouse-02/etc/clickhouse-server/config.d/config.xml b/docker-compose-recipes/recipes/cluster_1S_2R/fs/volumes/clickhouse-02/etc/clickhouse-server/config.d/config.xml
24index e35f6cc..f120593 100644
25--- a/docker-compose-recipes/recipes/cluster_1S_2R/fs/volumes/clickhouse-02/etc/clickhouse-server/config.d/config.xml
26+++ b/docker-compose-recipes/recipes/cluster_1S_2R/fs/volumes/clickhouse-02/etc/clickhouse-server/config.d/config.xml
27@@ -1,4 +1,16 @@
28 <clickhouse replace="true">
29+ <storage_configuration>
30+ <disks>
31+ <backups>
32+ <type>local</type>
33+ <path>/tmp/backups/</path>
34+ </backups>
35+ </disks>
36+ </storage_configuration>
37+ <backups>
38+ <allowed_disk>backups</allowed_disk>
39+ <allowed_path>/tmp/backups/</allowed_path>
40+ </backups>
41 <logger>
42 <level>debug</level>
43 <log>/var/log/clickhouse-server/clickhouse-server.log</log>
ディスクにバックアップを作成し復元してみる
テーブルを作る
cluster_1S_2R node 1 :) CREATE TABLE test ON CLUSTER `{cluster}` (
id Int64,
name String
)
ENGINE = ReplicatedMergeTree
ORDER BY id
;
CREATE TABLE test ON CLUSTER `{cluster}`
(
`id` Int64,
`name` String
)
ENGINE = ReplicatedMergeTree
ORDER BY id
Query id: 69f50a87-e400-417d-8861-421d0259366c
┌─host──────────┬─port─┬─status─┬─error─┬─num_hosts_remaining─┬─num_hosts_active─┐
│ clickhouse-02 │ 9000 │ 0 │ │ 1 │ 0 │
│ clickhouse-01 │ 9000 │ 0 │ │ 0 │ 0 │
└───────────────┴──────┴────────┴───────┴─────────────────────┴──────────────────┘
2 rows in set. Elapsed: 0.125 sec.
テストデータを挿入する
cluster_1S_2R node 1 :) INSERT INTO test (id, name) VALUES (1, 'abc'),(2, 'def')
INSERT INTO test (id, name) FORMAT Values
Query id: 8389a6db-e2c7-49f6-9229-a164fb0407ef
Ok.
2 rows in set. Elapsed: 0.014 sec.
挿入されたことを確認する
clickhouse-01, clickhouse-02 の両方にデータがあることを確認できた。
hum@ryzen5pc:~/github.com/ClickHouse/examples/docker-compose-recipes/recipes/cluster_1S_2R
$ docker compose exec -it clickhouse-01 clickhouse-client --query 'SELECT * FROM test'
1 abc
2 def
hum@ryzen5pc:~/github.com/ClickHouse/examples/docker-compose-recipes/recipes/cluster_1S_2R
$ docker compose exec -it clickhouse-02 clickhouse-client --query 'SELECT * FROM test'
1 abc
2 def
バックアップを取得する
cluster_1S_2R node 1 :) BACKUP TABLE default.test TO Disk('backups', '1.zip')
BACKUP TABLE default.test TO Disk('backups', '1.zip')
Query id: bba806fd-5411-46e9-80fc-1b299b24a166
┌─id───────────────────────────────────┬─status─────────┐
│ ca0cafdd-1e55-4fcd-8aed-0c0433cc062b │ BACKUP_CREATED │
└──────────────────────────────────────┴────────────────┘
1 row in set. Elapsed: 0.004 sec.
ON CLUSTER を付けると対応していないのでエラーになる
cluster_1S_2R node 1 :) BACKUP TABLE default.test ON CLUSTER `{cluster}` TO Disk('backups', '2.zip'
BACKUP TABLE default.test ON CLUSTER `{cluster}` TO Disk('backups', '2.zip')
Query id: 91108caa-86a5-44d1-8d4e-3be5c93c0660
0 rows in set. Elapsed: 0.366 sec.
Received exception from server (version 23.4.6):
Code: 344. DB::Exception: Received from localhost:9000. DB::Exception: Got error from clickhouse%2D01:9000. DB::Exception: Using archives with backups on clusters is disabled. (SUPPORT_IS_DISABLED)
RESTORE の際に ON CLUSTER がないとエラーになる
RESTORE しようとすると ReplicatedMergeTree なので ON CLUSTER が必要ということでエラーになる。
cluster_1S_2R node 1 :) RESTORE TABLE default.test AS default.test2 FROM Disk('backups', '1.zip')
RESTORE TABLE default.test AS default.test2 FROM Disk('backups', '1.zip')
Query id: cfba8a99-78c2-4055-9310-44b7c61cad69
0 rows in set. Elapsed: 0.002 sec.
Received exception from server (version 23.4.6):
Code: 36. DB::Exception: Received from localhost:9000. DB::Exception: Macro 'uuid' and empty arguments of ReplicatedMergeTree are supported only for ON CLUSTER queries with Atomic database engine: While creating table default.test2. (BAD_ARGUMENTS)
ON CLUSTER を付けると 1.zip が clickhouse-02 にないのでエラーになる。(それはそう)
cluster_1S_2R node 1 :) RESTORE TABLE default.test AS default.test2 ON CLUSTER `{cluster}` FROM Disk('backups', '1.zip')
RESTORE TABLE default.test AS default.test2 ON CLUSTER `{cluster}` FROM Disk('backups', '1.zip')
Query id: cc7275a5-e3f1-402e-ab68-addb07295634
0 rows in set. Elapsed: 0.382 sec.
Received exception from server (version 23.4.6):
Code: 599. DB::Exception: Received from localhost:9000. DB::Exception: Got error from clickhouse%2D02:9000. DB::Exception: Backup Disk('backups', '1.zip') not found. (BACKUP_NOT_FOUND)
1.zip を clickhouse-02 にコピーし RESTORE してみる
コピーする
hum@ryzen5pc:~/github.com/ClickHouse/examples/docker-compose-recipes/recipes/cluster_1S_2R
$ docker compose cp clickhouse-01:/tmp/backups/1.zip ./
[+] Copying 1/1
✔ clickhouse-01 copy clickhouse-01:/tmp/backups/1.zip to ./ Copied 0.0s
hum@ryzen5pc:~/github.com/ClickHouse/examples/docker-compose-recipes/recipes/cluster_1S_2R
$ chmod 755 1.zip
hum@ryzen5pc:~/github.com/ClickHouse/examples/docker-compose-recipes/recipes/cluster_1S_2R
$ docker compose cp 1.zip clickhouse-02:/tmp/backups/1.zip
[+] Copying 1/1
✔ clickhouse-02 copy 1.zip to clickhouse-02:/tmp/backups/1.zip Copied
RESTORE できた
cluster_1S_2R node 1 :) RESTORE TABLE default.test AS default.test2 ON CLUSTER `{cluster}` FROM Disk('backups', '1.zip')
RESTORE TABLE default.test AS default.test2 ON CLUSTER `{cluster}` FROM Disk('backups', '1.zip')
Query id: 8d3f7484-dee5-46c4-9755-a3c1a1250d5b
┌─id───────────────────────────────────┬─status───┐
│ 365a980b-07c3-4835-8f5d-8985bb152ac9 │ RESTORED │
└──────────────────────────────────────┴──────────┘
1 row in set. Elapsed: 0.303 sec.
データも両方のノードで確認できる。
hum@ryzen5pc:~/github.com/ClickHouse/examples/docker-compose-recipes/recipes/cluster_1S_2R
$ docker compose exec -it clickhouse-01 clickhouse-client --query 'SELECT * FROM test2'
1 abc
2 def
hum@ryzen5pc:~/github.com/ClickHouse/examples/docker-compose-recipes/recipes/cluster_1S_2R
$ docker compose exec -it clickhouse-02 clickhouse-client --query 'SELECT * FROM test2'
1 abc
2 def

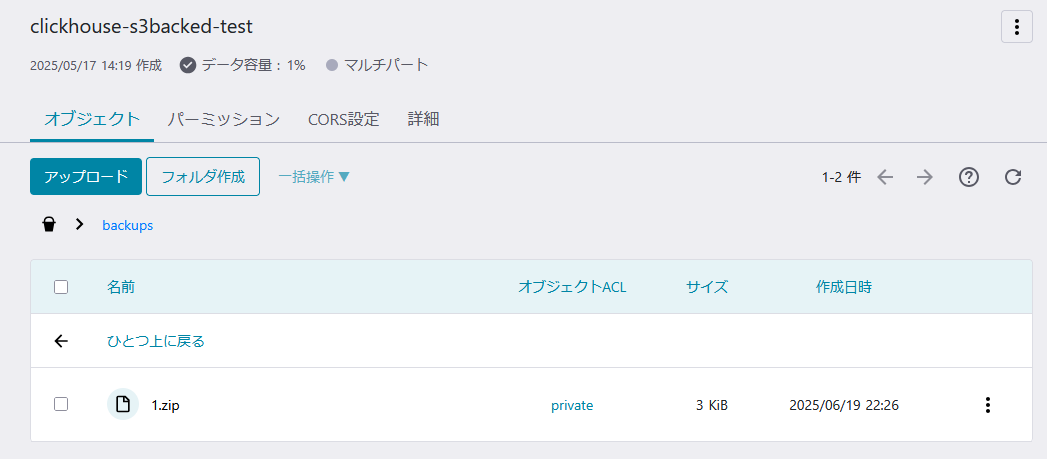

S3 にバックアップを取ってみる
cluster_1S_2R node 1 :) BACKUP TABLE default.test TO S3('https://s3.isk01.sakurastorage.jp/<bucket>/backups/1.zip', '<access_key_id>', '<secret_access_key>')
BACKUP TABLE default.test TO S3('https://s3.isk01.sakurastorage.jp/<bucket>/backups/1.zip', '<access_key_id>', '<secret_access_key>')
Query id: 0d34b227-8340-4c67-b093-650a363f5588
┌─id───────────────────────────────────┬─status─────────┐
│ f26664c9-3e2a-4ac0-9ac9-f0b006a9933a │ BACKUP_CREATED │
└──────────────────────────────────────┴────────────────┘
1 row in set. Elapsed: 1.683 sec.
S3 のバックアップから RESTORE してみる
先ほどと同じく ON CLUSTER がなくてエラー
cluster_1S_2R node 1 :) RESTORE TABLE default.test AS default.test3 FROM S3('https://s3.isk01.sakurastorage.jp/<bucket>/backups/1.zip', '<access_key_id>', '<secret_access_key>')
RESTORE TABLE default.test AS default.test3 FROM S3('https://s3.isk01.sakurastorage.jp/<bucket>/backups/1.zip', '<access_key_id>', '<secret_access_key>')
Query id: 021bfbbf-6666-443a-870e-fbede593a35b
0 rows in set. Elapsed: 0.928 sec.
Received exception from server (version 23.4.6):
Code: 36. DB::Exception: Received from localhost:9000. DB::Exception: Macro 'uuid' and empty arguments of ReplicatedMergeTree are supported only for ON CLUSTER queries with Atomic database engine: While creating table default.test3. (BAD_ARGUMENTS)
ON CLUSTER を入れると RESTORE できた。
cluster_1S_2R node 1 :) RESTORE TABLE default.test AS default.test3 ON CLUSTER `{cluster}` FROM S3('https://s3.isk01.sakurastorage.jp/<bucket>/backups/1.zip', '<access_key_id>', '<secret_access_key>')
RESTORE TABLE default.test AS default.test3 ON CLUSTER `{cluster}` FROM S3('https://s3.isk01.sakurastorage.jp/<bucket>/backups/1.zip', '<access_key_id>', '<secret_access_key>')
Query id: 216f73d2-e96e-478a-bf9d-25e781b36dee
┌─id───────────────────────────────────┬─status───┐
│ c1f03fd9-ee95-4096-b0d1-46d18f6e7cce │ RESTORED │
└──────────────────────────────────────┴──────────┘
1 row in set. Elapsed: 15.223 sec
パーティション単位のバックアップを試す
1 分単位でパーティションを切る設定にしてみる。
cluster_1S_2R node 1 :) CREATE TABLE parted_test ON CLUSTER `{cluster}` (
time DateTime64,
Name String
)
ENGINE = ReplicatedMergeTree
ORDER BY time
PARTITION BY toStartOfMinute(time)
;
CREATE TABLE parted_test ON CLUSTER `{cluster}`
(
`time` DateTime64,
`Name` String
)
ENGINE = ReplicatedMergeTree
PARTITION BY toStartOfMinute(time)
ORDER BY time
Query id: 4e8f5e09-1faa-455f-8dc0-a43ce7238192
┌─host──────────┬─port─┬─status─┬─error─┬─num_hosts_remaining─┬─num_hosts_active─┐
│ clickhouse-01 │ 9000 │ 0 │ │ 1 │ 0 │
│ clickhouse-02 │ 9000 │ 0 │ │ 0 │ 0 │
└───────────────┴──────┴────────┴───────┴─────────────────────┴──────────────────┘
2 rows in set. Elapsed: 0.120 sec.
cluster_1S_2R node 1 :) INSERT INTO parted_test VALUES ('2025-06-19 00:00:00', 'abc'), ('2025-06-19 00:00:01', 'def'), ('2025-06-19 00:01:00', 'ghi'), ('2025-06-19 00:01:01', 'jkl');
INSERT INTO parted_test FORMAT Values
Query id: 26064124-1eef-4222-924a-c538fbb7b095
Ok.
4 rows in set. Elapsed: 0.031 sec.INSERT INTO parted_test VALUES ('2025-06-19 00:00:00', 'abc'), ('2025-06-19 00:00:01', 'def'), ('2025-06-19 00:01:00', 'ghi'), ('2025-06-19 00:01:01', 'jkl');
cluster_1S_2R node 1 :) SELECT * FROM parted_test
SELECT *
FROM parted_test
Query id: 303320e7-2cdf-48b9-9b60-b099c9defe82
┌────────────────────time─┬─Name─┐
│ 2025-06-19 00:01:00.000 │ ghi │
│ 2025-06-19 00:01:01.000 │ jkl │
└─────────────────────────┴──────┘
┌────────────────────time─┬─Name─┐
│ 2025-06-19 00:00:00.000 │ abc │
│ 2025-06-19 00:00:01.000 │ def │
└─────────────────────────┴──────┘
4 rows in set. Elapsed: 0.002 sec.
2025-06-19 00:00:00のパーティションのバックアップを S3 に取る
cluster_1S_2R node 1 :) BACKUP TABLE default.parted_test PARTITION '2025-06-19 00:00:00' TO S3('https://s3.isk01.sakurastorage.jp/<bucket>/backups/20250619T0000.zip', '<access_key_id>', '<secret_access_key>')
BACKUP TABLE default.parted_test PARTITION '2025-06-19 00:00:00' TO S3('https://s3.isk01.sakurastorage.jp/<bucket>/backups/20250619T0000.zip', '<access_key_id>', '<secret_access_key>')
Query id: 7353f250-cc1c-4660-b309-d40371878b2d
┌─id───────────────────────────────────┬─status─────────┐
│ 1238f2d5-45e7-4e45-9616-4a1b309ee70b │ BACKUP_CREATED │
└──────────────────────────────────────┴────────────────┘
1 row in set. Elapsed: 1.613 sec.BACKUP TABLE default.parted_test PARTITION '2025-06-19 00:00:00' TO S3('https://s3.isk01.sakurastorage.jp/<bucket>/backups/20250619T0000.zip', '<access_key_id>', '<secret_access_key>')
RESTORE する
cluster_1S_2R node 1 :) RESTORE TABLE default.parted_test AS default.parted_test2 ON CLUSTER `{cluster}` FROM S3('https://s3.isk01.sakurastorage.jp/<bucket>/backups/20250619T0000.zip', '<access_key_id>', '<secret_access_key>')
RESTORE TABLE default.parted_test AS default.parted_test2 ON CLUSTER `{cluster}` FROM S3('https://s3.isk01.sakurastorage.jp/<bucket>/backups/20250619T0000.zip', '<access_key_id>', '<secret_access_key>')
Query id: 5b71fefd-4d46-43ee-98b2-a2125abe19d6
┌─id───────────────────────────────────┬─status───┐
│ 59d486bb-7fd7-4b5b-811e-dbb37565ff79 │ RESTORED │
└──────────────────────────────────────┴──────────┘
1 row in set. Elapsed: 4.676 sec.
2025-06-19 00:00:00のパーティションのデータが復元できていることを確認できる。
hum@ryzen5pc:~/github.com/ClickHouse/examples/docker-compose-recipes/recipes/cluster_1S_2R
$ docker compose exec -it clickhouse-01 clickhouse-client --query 'SELECT * FROM parted_test2'
2025-06-19 00:00:00.000 abc
2025-06-19 00:00:01.000 def
hum@ryzen5pc:~/github.com/ClickHouse/examples/docker-compose-recipes/recipes/cluster_1S_2R
$ docker compose exec -it clickhouse-02 clickhouse-client --query 'SELECT * FROM parted_test2'
2025-06-19 00:00:00.000 abc
2025-06-19 00:00:01.000 def
